Car Jack Hydraulic Pump 12V DC Double Acting Power Unit 4 Quart Steel Oil Tank Dump Trailer Truck Car Lift Motor Pump
Please Note: All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
Product Details
Easy to Use
Reliable Quality
Rapid Start
Wide Application
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Tank Material: Metal
Displacement of hydraulic pump: 0.825GPM
Pressure relief valve: 22MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
Rated speed: 2850R/MIN
Motor power: 1.6-3.0KW
Motor voltage: DC12-DV24
Fuel tank: 4 quart
Double acting Power-Up/Power Down
1500 PS Max Relief Setting on B port
4 Quart Metal Reservoir
SAE # 6 Port, Horizontal mount
Hand held pendant with about 15 feet (4.5 m) removal cord and start solenoid
1 × 4 Quart Double Acting Hydraulic Pump
1 × Instruction Manual
Several Related Accessories (Including connectors)

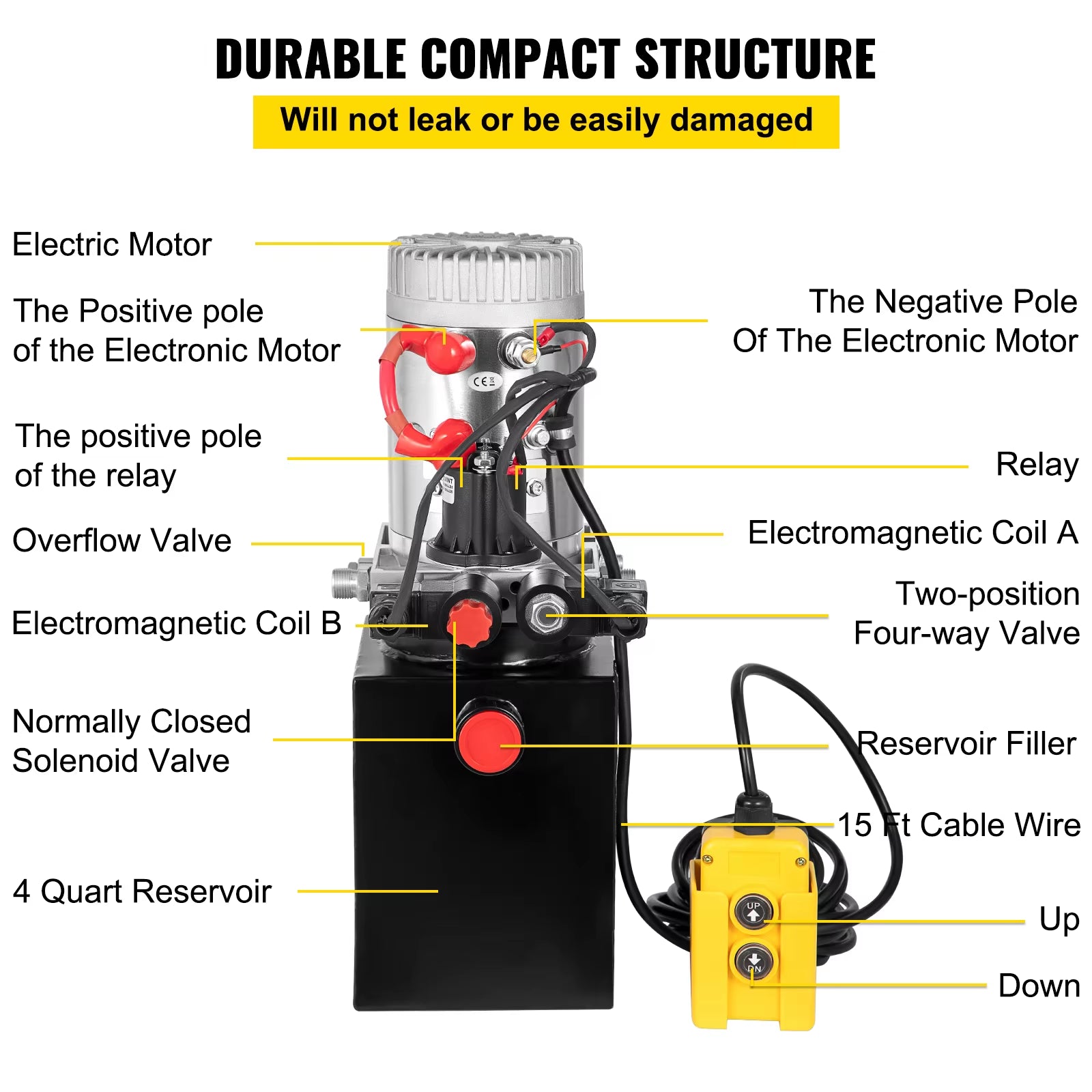

Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.

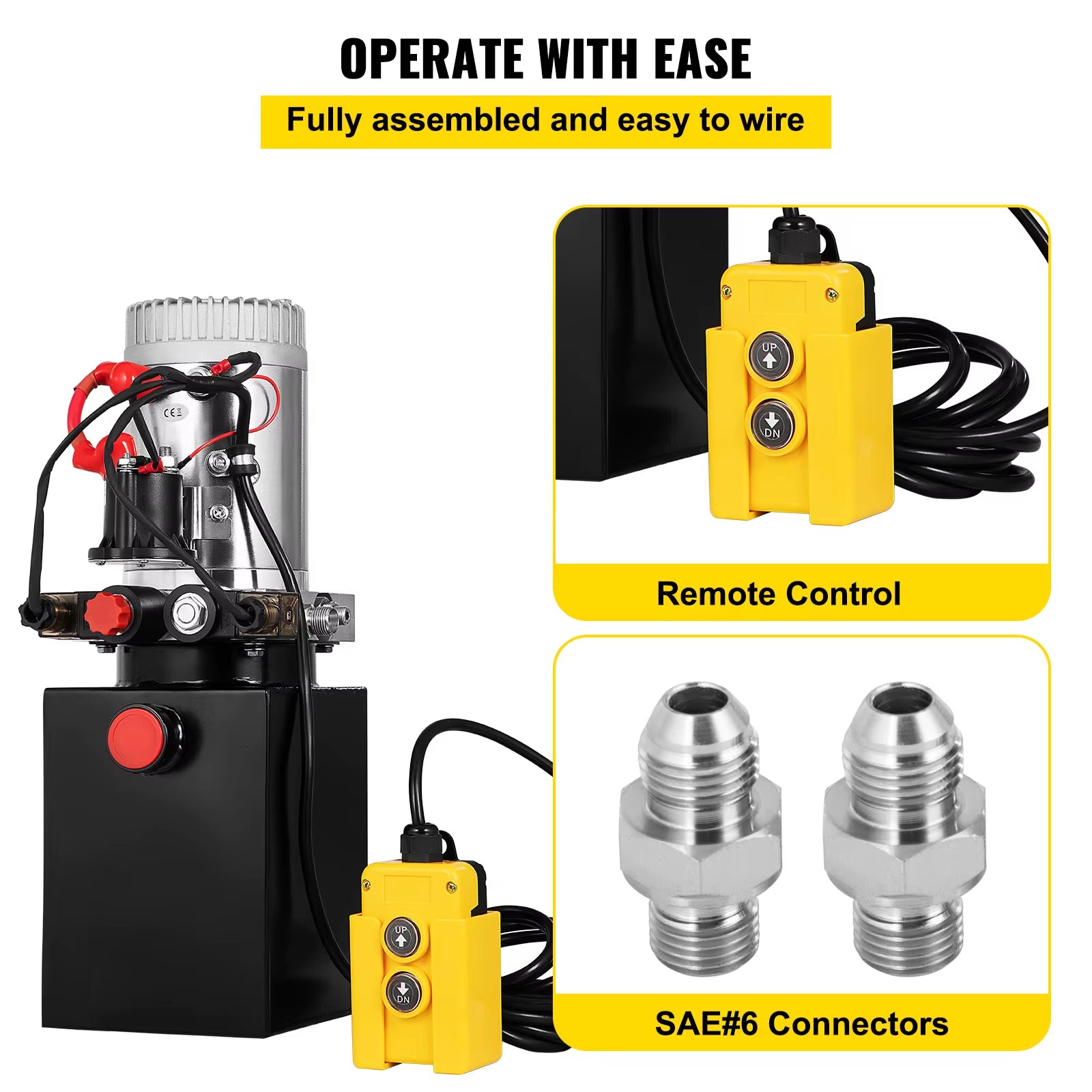

Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. Two additional SAE#6 connectors and one 15 ft remote control are included in the package.
Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.

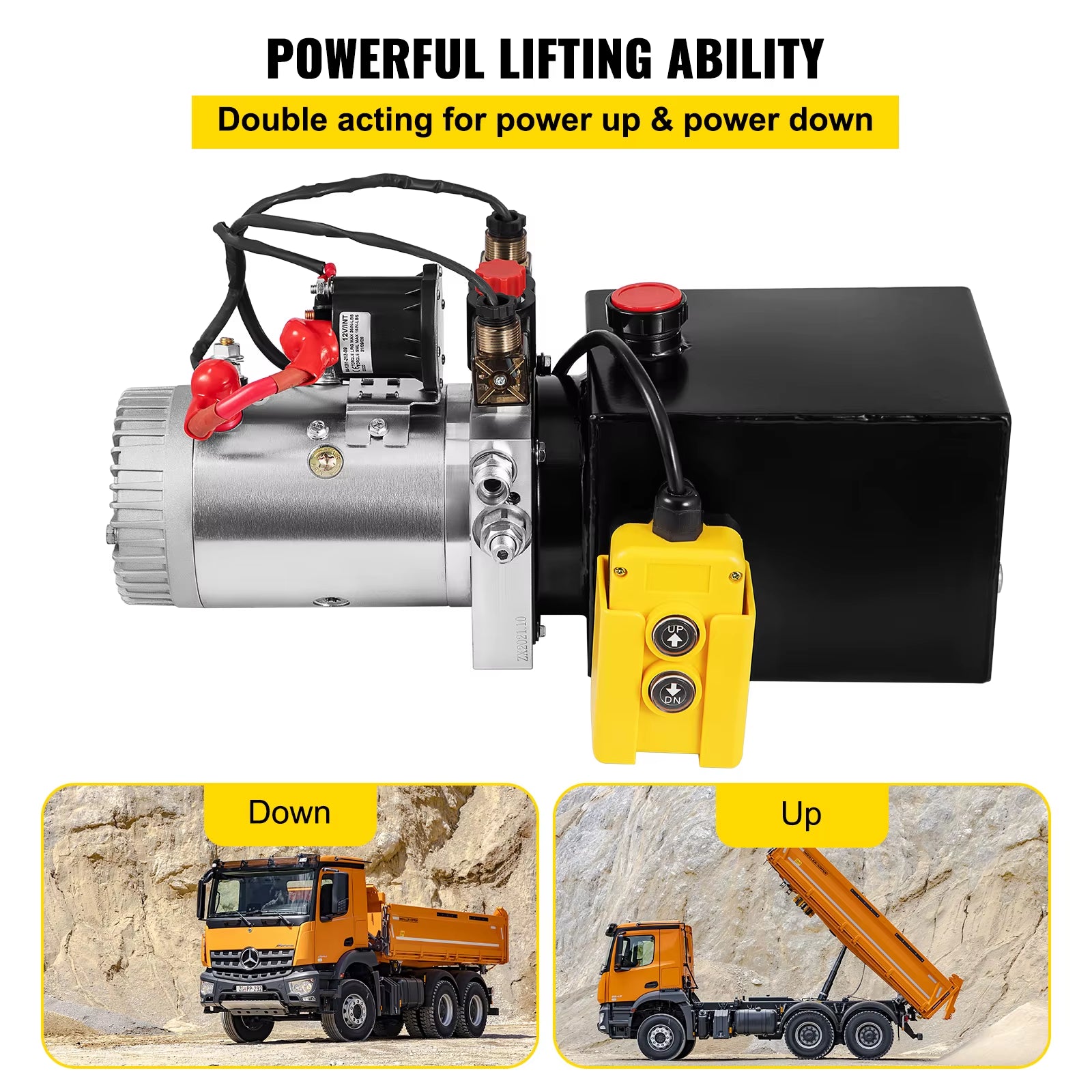

Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.

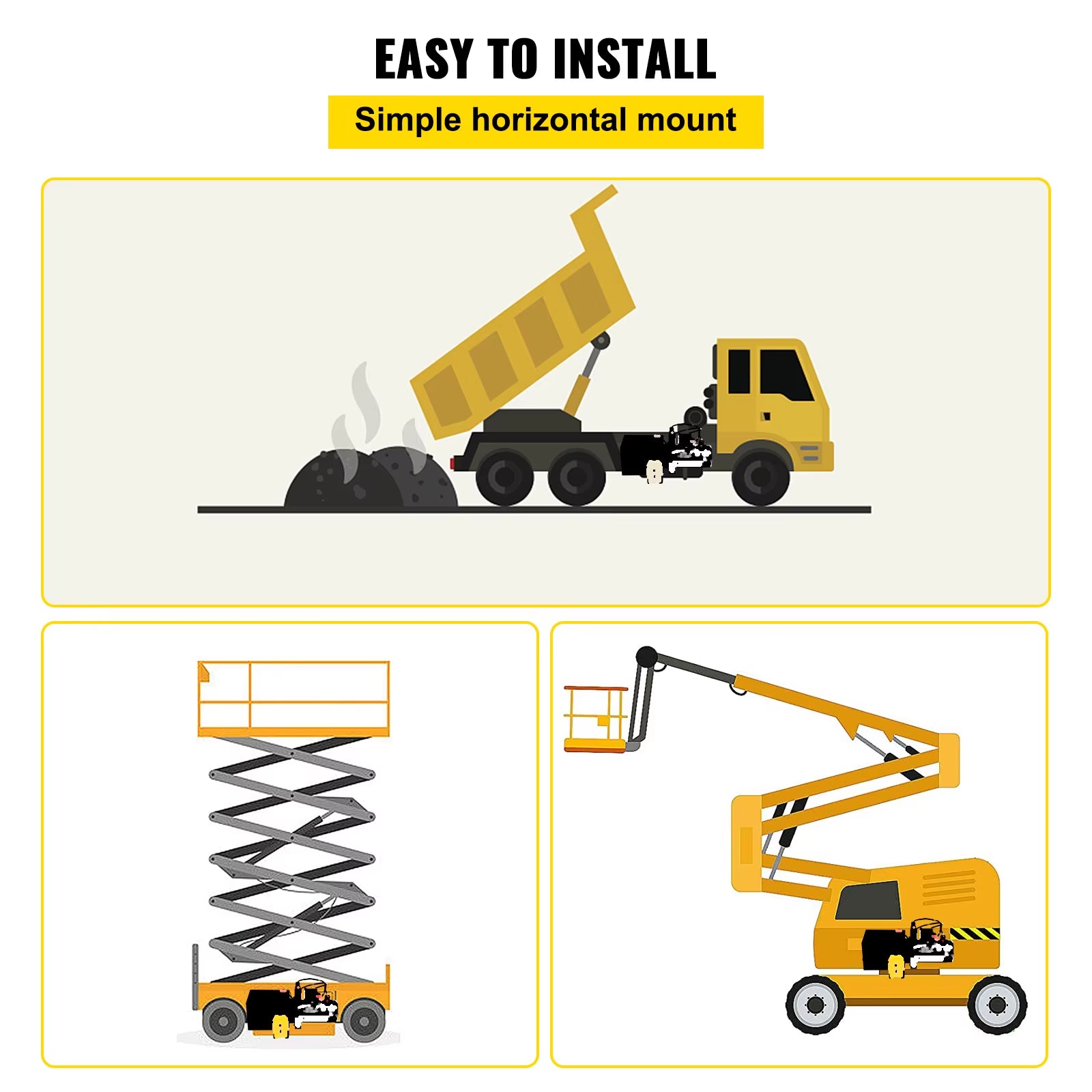

Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
